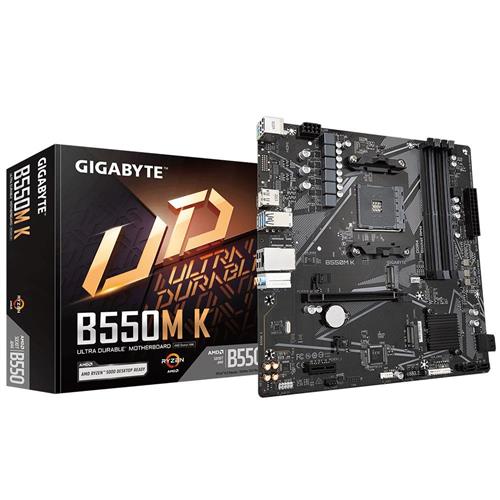

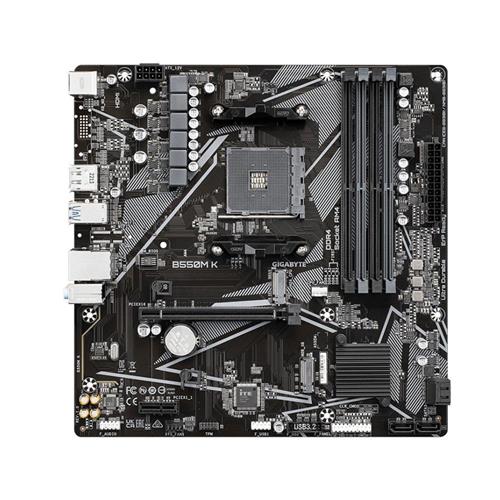

Placa Mãe Gigabyte B550M K, Chipset B550, AMD AM4, mATX, DDR4
SKU: 16880
R$ 888,49R$ 710,79à vista no PIX
DESCRIÇÃO:
Suporta processadores AMD Ryzen série 5000 / Ryzen 5000 série G / Ryzen 4000 série G e Ryzen™™™™ série 3000
Dual Channel ECC / Não-ECC sem buffer DDR4, 4 DIMMs
Slot PCIe 4.0 Ready x16 Ultra Durável™
Dois conectores NVMe PCIe 4.0/3.0 M.2 ultrarrápidos
Capacitores de áudio de alta qualidade e protetor de ruído de áudio para qualidade de áudio final
Características:
Marca: GIGABYTE
Modelo: B550M K
Especificações técnicas:
CPU:
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
(Please refer "CPU Support List" for more information.)
Chipset:
AMD B550
Memória:
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Gráficos Onboard:
Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Áudio:
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN:
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Slots de Expansão:
1 x PCI Express x16 slot, integrated in the CPU:
AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode
1 x PCI Express x1 slot, integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Interface de Armazenamento:
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:
Supporting PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
USB:
CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Conectores Internos I/O:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
Conectores Painel Traseiro:
1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Controlador I/O:
iTE® I/O Controller Chip
Monitoramento H/W:
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Características Exclusivas:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Pacote de Software:
Norton® Internet Security (OEM version)
LAN bandwidth management software
Sistema Operacional:
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor:
Micro ATX Form Factor; 24.4cm x 24.4cm
Marca:
Gigabyte
Modelo:
B550M K
Linha:
Ultra Durable
Capacidade máxima suportada da memória RAM:
128GB
Tipos de Memória:
DDR4
Plataforma:
AMD
Com processador:
Não
Chipset:
B550
Aplicações:
Para computador de mesa
Fator de forma:
Micro ATX
Socket:
AM4
Cor:
Preto
É kit:
Não
EAN:
4719331852764
