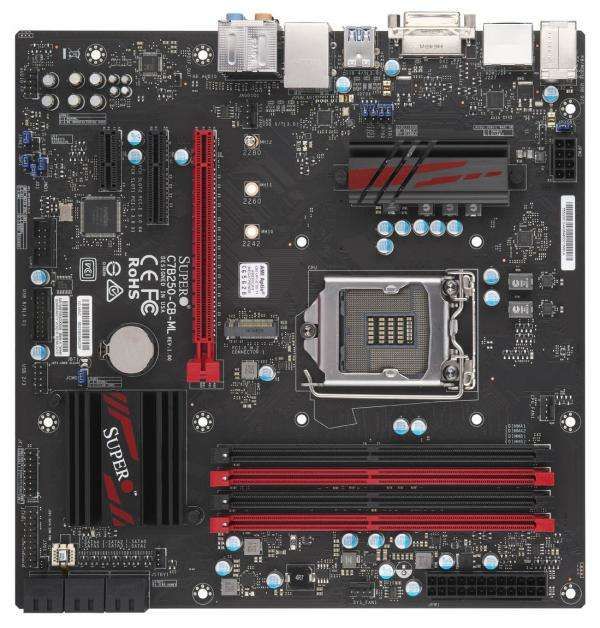

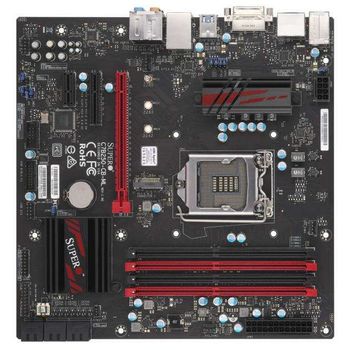

PLACA MAE B250 MICRO-ATX - INTEL 7A. GER. (1151) - DDR4 - MBD-C7B250-CB-ML-O
PLACA MAE B250 MICRO-ATX - INTEL 7A. GER. (1151) - DDR4 - MBD-C7B250-CB-ML-O
Ops! Ops! Infelizmente não possuímos mais este item em estoque.

PLACA MAE B250 MICRO-ATX - INTEL 7A. GER. (1151) - DDR4 - MBD-C7B250-CB-ML-O

Avaliações do produto

Seja o primeiro a avaliar!
Ops! Infelizmente não possuímos mais este item em estoque.

Descrição do produto


Form Factor
microATX

Dimensions
9.6" x 9.6" (24.38cm x 24.38cm)

CPU
Intel® 6th/7th Generation Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series processor.
Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 65W TDP

Memory Capacity
Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots

Memory Type
2400MHz/2133MHz DDR4 288-pin Non-ECC UDIMM

DIMM Sizes
4GB, 8GB, 16GB

Memory Voltage
1.2V

Chipset
Intel® B250 Express

SATA
6 SATA3 (6 Gbps) ports;

Network Controllers
Single LAN with Intel® single Ethernet PHY i219V

Audio
ALC 888S HD Audio

Graphics
Up to DP 1.2, up to HDMI 1.4b

LAN
1 RJ45 Gigabit Ethernet LAN ports

USB
4 USB 2.0 ports (2 rear + 2 headers),
6 USB 3.0 ports (4 rear + 2 headers)

Video Output
1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port

Serial Port / Header
1 COM Port (1 header)

PCI-E
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4,
1 PCI-E 3.0 x1

M.2
M.2 Interface: PCI-E 3.0 x4
Form Factor: 2280

BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features
ACPI 5.0
SMBIOS 2.7
USB Keyboard support

Software
SuperDoctor® 5, Watchdog

Power Configurations
ATX Power connector
ACPI Power Management
CPU thermal trip support for processor protection
Keyboard Wakeup from Soft-Off
Power-on mode for AC power recovery

Voltage
+12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3 -fan status, 3+2 Phase-switching voltage regulator, 3.3V standby, HT, VBAT

FAN
3x 4-pin fan headers (up to 3 fans), 3 fans with tachometer monitoring, Fan speed control, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for speed control, Thermal control tachometer fan connectors

Temperature
CPU thermal trip support

LED
Suspend static indicator LED

Other Features
ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, RoHS
